    PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line

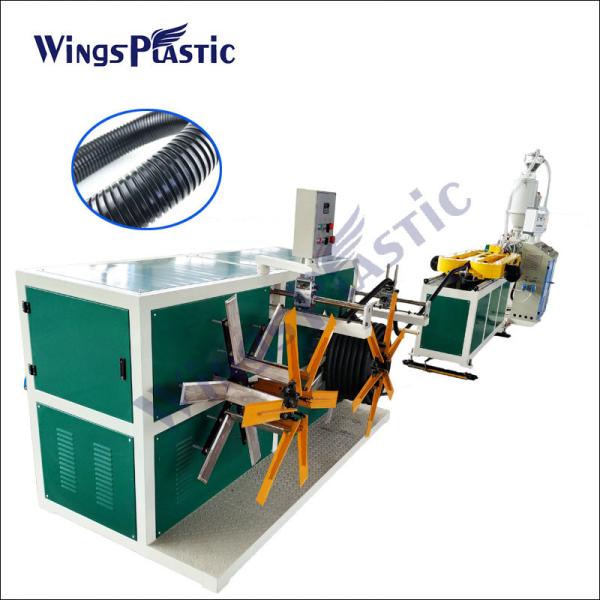

    Plastic PE Single-wall Corrugated Pipe Extrusion Production Line

    Qingdao Wings Plastic Technology Co., Ltd. specializes in the production of various types of plastic pipe extrusion equipment. The products include but are not limited to: high-speed plastic single-wall corrugated pipe production line, chain gear moulds corrugated hose production line, plastic double-wall corrugated pipe production line, pre-stressed corrugated pipe production line, etc.
    The characteristics of the company's single-wall bellows production line are as follows:
    1. Using high-speed and high-efficiency single screw extruder not only saves electricity and efficiency, but also does not increase the pressure of the extruder head, so it is easy to form corrugated pipes.
    2. High-speed forming machine adopts tunnel structure, water cooling mode, and there is no link between the module and the module. The module has long service life and convenient replacement. The fastest production speed can reach 25 meters per minute.
    3. The common speed chain forming machine also uses water cooling mode, but adopts the mode of joint transmission of module chain and gear. This kind of structure is of high quality and low price.
    4. The coiler is controlled by frequency conversion motor and potentiometer, and abandons the old torque motor. The structure will not stretch the corrugated pipes.


    Welcome to get your request by email: info@wingsplastic.com


    Here is our system basic informations for single wall corrugated pipe machine.


    Machinery TypePipe Diameter ODMoulds QuantityForming Speed
    WS-16/547mm-16mm54 Pairs15m/min
    WS-38/4412mm-38mm44 Pairs15m/min
    WS-38/7212mm-38mm72 Pairs20m/min
    WS-38/8112mm-38mm81 Pairs30m/min
    WS-52/6016mm-52mm60 Pairs20m/min
    WS-75/6030mm-75mm60 Pairs15m/min
    WS-110/6050mm-110mm60 Pairs10m/min
