PE 80 PE 100 Plastic HDPE Pipe Production Line

PE 80 PE 100 Materials Pipe Extruder Machine / Plastic HDPE Pipe Extrusion Production Line

We are offering the PE 80 PE 100 Materials Pipe Extruder Machine / HDPE Pipe Production Line all the world. We only focus one plastic pipe production line manufacturering and sales, HDPE pipe is our main product.

The HDPE materials pipe extruder machine / HDPE pipe production line include:

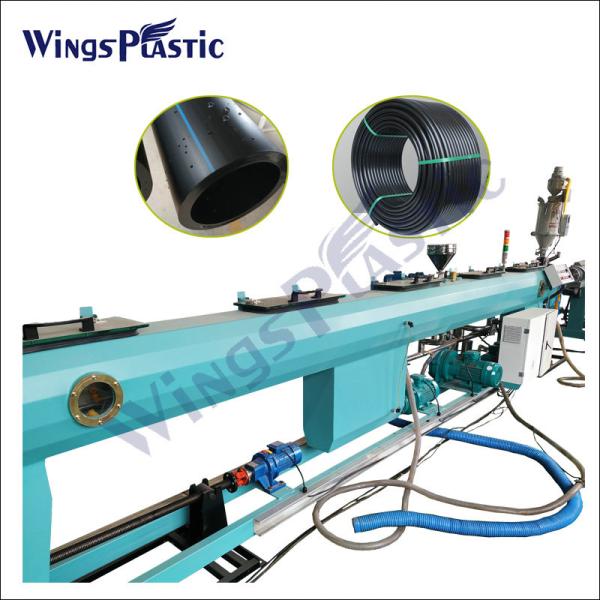

Automatic feeding system, single screw extruder for pipe and single screw extruder for mark line , die head, vacuum pipe sizing tank , water spray cooling tank, the logo or produced informations printer, haul off unit , cutting machine, stacking machine or pipe rolling and winding system .

The PE 80 PE 100 Materials Pipe Extruder Machine / HDPE Pipe Production Line technical informations:

model	screw diameter	L/D	driving power	output
SJ-45/30	45 mm	30:1	22/30kw	60/80kg/h
SJ-65/33	65 mm	33:1	45/75/90kw	150/210/250kg/h
SJ-75/33	75 mm	33:1	110/132kw	350/450kg/h
SJ-90/33	90 mm	33:1	185/220kw	550/700kg/h
SJ-105/33	105 mm	33:1	220/285kw	650/800kg/h
SJ-120/33	120 mm	33:1	315kw	950kg/h
SJ-150/33	150 mm	33:1	450kw	1350kg/h

The HDPE pipes introduce:

In water supply and drainage pipe system, the plastic pipe gradually replaced the traditional pipes such as cast iron pipe and galvanized steel pipe, it has become the mainstream use of tubing. Compared with the traditional pipe, plastic pipe has light weight, corrosion resistance, small flow resistance, energy saving, convenient installation fast, low cost advantage.

HDPE pipe has become the second largest consumption pipes in the world's varieties of plastic pipeis after PVC - U pipes.For conveying gas or water ,it should be adopted of PE100 and PE80 level or in high density polyethylene pipe;PE63 has gradually become obsolete.In terms of water delivery, the fastest growth is PE100 pipe system, the growth rate of the next five years is expected to reach more than 10%.
In China, HDPE pipe has been more rapid development and application of HDPE pipe gradually replace the position of PVC - U pipes, it becomes a main pipeline. At the same time, the HDPE pipe in outside China also gradually to be able to be used.
